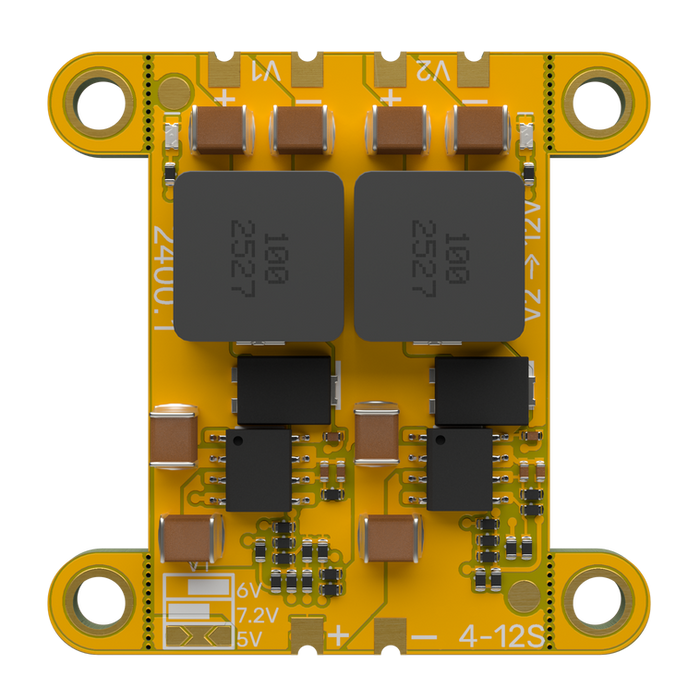

Power converter
BEC 2x12S/3A v1
Dual BEC base configuration: 5/6/7.2 V, 3 A and 12 V, 3 A. Input voltage: 4–12S (15–55 V).
Can be mounted on the PDB 12S/6M/400A v1 board.
NEW
810 UAH
Preorder
Power converter
BEC 2x12S/3A v1
Dual BEC base configuration: 5/6/7.2 V, 3 A and 12 V, 3 A. Input voltage: 4–12S (15–55 V).
Can be mounted on the PDB 12S/6M/400A v1 board.
NEW
YOU MAY ALSO LIKE
Mounting holes
30.5 × 30.5 mm, M3
Input voltage
4–12S (15–55 V)
BEC2
12 V, 3 A without forced airflow; 4 A when mounted on PDB 12S/6M/400A v1
BEC1
5/6/7.2 V, 3 A without forced airflow; 4 A when mounted on PDB 12S/6M/400A v1
Dimensions excluding mounting tabs
37 × 25 mm
Dimensions including mounting tabs
37 × 37 mm
BEC 2x12S/3A v1
TECHNICAL SPECIFICATIONS
