Controller for fixed-wing aircraft and UGVs, with three BECs and dual-camera support.
Target: SpeedyBeeF405WING.
BETA TEST
2880 UAH
Preorder
Fixed-wing flight controller
BORYSPIL F405 12S v2
Controller for fixed-wing aircraft and UGVs, with three BECs and dual-camera support.
Target: SpeedyBeeF405WING.
BETA TEST
YOU MAY ALSO LIKE
Gyroscope/accelerometer
ICM-42688-P
MCU
STM32F405
Firmware
INAV, Ardupilot, Betaflight
Barometer
DPS368
UART
6
Dual-camera support
Switching via PinIO1 (User1)
Servo
11
Target
SpeedyBeeF405WING
12C
1
Blackbox
MicroSD card slot
USB
Onboard USB Type-C + connector for an external USB board
ADC inputs
4
BEC 1 (FC)
5 V, 5 A
Power supply
6-12S
BEC 3 (servos, “Vs” rail)
5/6/7.2 V, 5 A
BEC 2 (VTX, “Vx” rail)
12/19 V, 5 A
Dimensions
56 × 36 × 16 mm
BORYSPIL v2 flight controller
TECHNICAL SPECIFICATIONS
Onboard or external USB
The board has an onboard USB port. If your drone layout requires an external port, our USB board—with an integrated buzzer—can be connected to the dedicated connector.
Two battery connection points
Duplicated battery connection points on the PDB (up to 200 A) allow convenient connection from either side. Supports 6S to 12S power.
Quick connections
Connectors are provided for common peripheral configurations: ELRS, DVTX, GPS, ArduPilot telemetry, I2C2, and CAN.
Dual-camera support
Два входи для камер - для додаткової камери спостереження, прицілювання або нічного бачення. Перемикання між ними за допомогою PinIO.

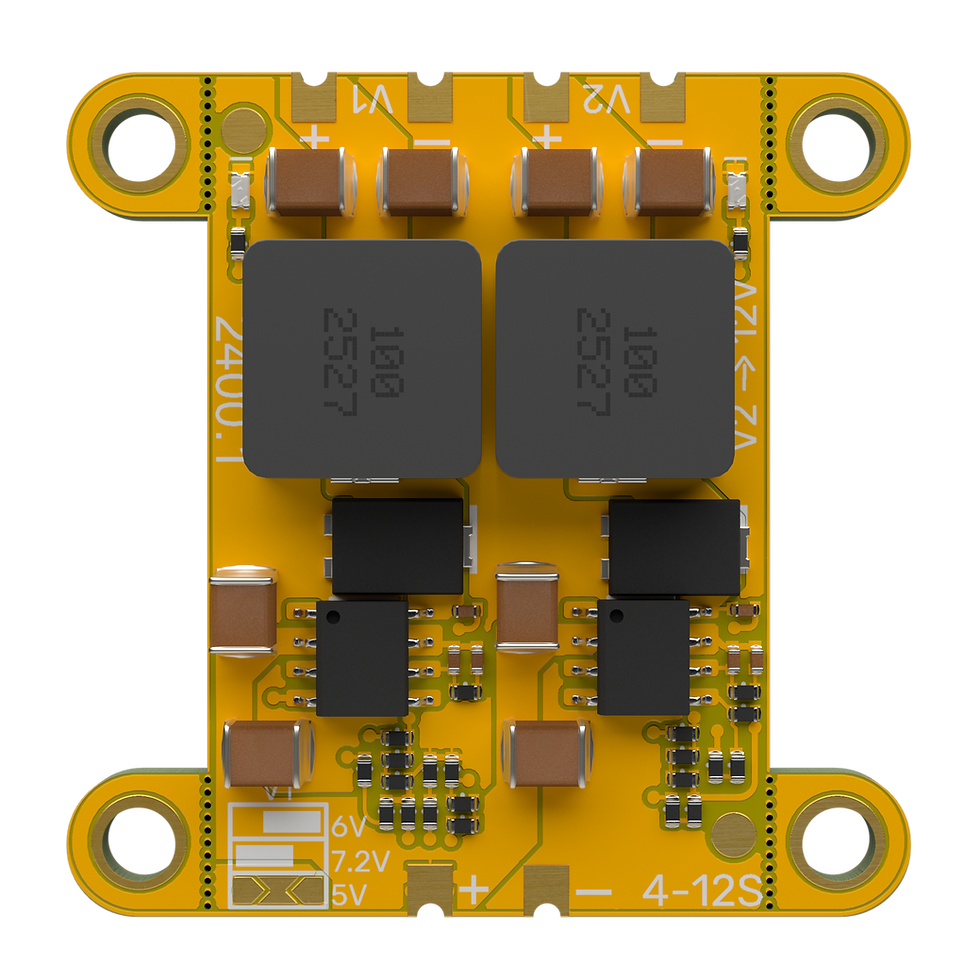

Three powerful 5 A BECs
5 V for the FC and peripherals, 12/19 V for the VTX, and 5/6/7.2 V for servos. VTX and servo voltages can be selected with jumpers, without additional modifications.
Easy assembly
Instead of small mounting hardware, we use standoffs soldered directly to the board. This simplifies installation and reduces assembly time, especially in volume production.
