Flight controller
HALYCHYNA H743 12S v1
Versatile STM32H743-based FC for multirotors, fixed-wing aircraft, and UGVs.
Target: MATEKH743.
NEW
HALYCHYNA H743 12S v1
Versatile STM32H743-based FC for multirotors, fixed-wing aircraft, and UGVs.
Target: MATEKH743.
NEW
GENUINE ICM-42688-P IMUs
HALYCHYNA H743 12S contains two genuine ICM-42688-P IMUs.
The gold standard for industrial-grade controllers.
SOLDER PADS + CONNECTORS
Solder pads are available for all connections, with connectors also provided for the main interfaces: GPS + compass, TELEM, DVTX, ELRS, CAN, USB, ESC, and servo power.
FLEXIBLE SERVO POWER
Servo outputs can be powered by the onboard BEC1 (5 V, 3 A) or an external BEC, either standalone or on a PDB. The source is selected with an onboard jumper.

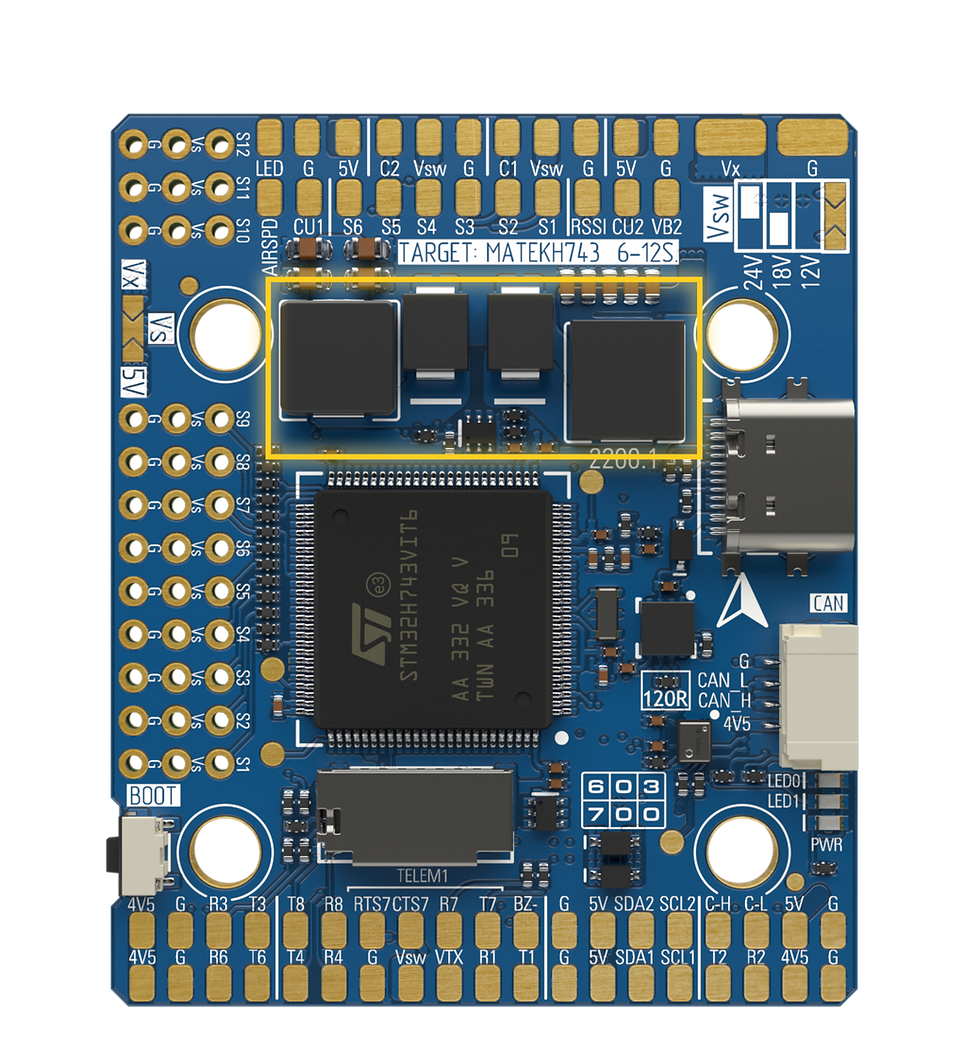

TWO BUILT-IN BECs
BEC1, onboard: 5 V, 3 A.
BEC2, cameras/VTX: 12/18/24 V, 3 A.
Suitable for high-power transmitters such as the AKK Alpha 16W.
POWER OPTIONS FOR DIFFERENT BUILDS
A six-motor multirotor PDB, a fixed-wing PDB, and a four-channel ESC offer options for different builds.
VERSATILITY
The powerful H743 processor delivers high flight-controller performance, stable operation in more complex drone configurations, and full ArduPilot support for advanced flight applications.
FAMILIAR TARGET
We use the MATEKH743 target so that software developed by Ukraine’s Defense Forces can run on our controller without modification.
ONBOARD AND EXTERNAL USB
The board has a built-in USB Type-C port.
If an external port is needed, a separate USB module with a buzzer is available.
CONTROLLER FEATURES
MCU
STM32H743
I2C
2
Gyroscope/accelerometer
2xICM-42688-P
CAN
1
Firmware
Betaflight, INAV, Ardupilot
ADC
6
UART
7
BEC1
5 V, 3 A
Barometer
DPS368
BEC2
12/18/24V 3A
Servo
12 + 1 LED
Dimensions
52 × 44 mm
Blackbox
MicroSD slot
Mounting holes
30.5 × 30.5 mm, M3
Power supply
6-12S
